How can rotor manufacturing meet diverse needs?
In today’s highly industrialized era, as the core component of many mechanical equipment, rotors have diverse requirements and challenges in different industries due to their unique operating environments and needs.
1. Market Demand
In the chemical industry, corrosion resistance is the primary challenge faced by rotors. Chemical production processes often involve various strong acids, alkalis, and highly corrosive chemical media. Therefore, rotors must be made of special corrosion-resistant materials. Rotors not only need to continuously operate while being immersed in corrosive solutions for a long time but also ensure that their mechanical properties are not damaged. The rotor surface also requires special coating treatment to prevent structural damage caused by chemical erosion.
In the aerospace field, the accuracy requirements for rotors are extremely high. The turbine rotor in an aircraft engine, when operating at high speeds, any slight imbalance or dimensional deviation may lead to catastrophic consequences. Its machining accuracy needs to reach the micron or even nanometer level. Starting from the forging of raw materials, each process must be carried out in a strictly temperature-controlled and dust-free environment, using high-precision CNC machine tools and advanced measuring instruments for repeated grinding and testing to ensure the accuracy of the rotor.
In the automotive manufacturing industry, especially in the field of high-performance racing, the rotor speed has extremely high standards. The crankshaft rotor and turbocharger rotor of a racing engine need to have extremely high speeds to generate super power in a short time.
In the medical device industry, such as the superconducting rotor in a magnetic resonance imaging (MRI) device, stability and magnetic field uniformity are the key factors. Even slight vibrations or magnetic field fluctuations will seriously affect the imaging quality and interfere with doctors’ judgment of patients’ conditions.
2. Rotor Manufacturing Process
2.1 Design Phase
Fully communicate with customers to understand the performance requirements of the motor, such as speed, torque, power, etc., as well as the working conditions of the rotor in specific application scenarios, such as temperature, humidity, vibration, etc., and determine the design parameters of the rotor. According to the requirements, design the structure of the rotor, including the shape, size, and material of the rotor core, the number, arrangement, and magnetization direction of the permanent magnets, and also consider the connection method and strength requirements of the rotating shaft. Use finite element analysis software and other tools to simulate and analyze the design scheme to verify whether the performance indicators such as the magnetic field distribution, electromagnetic force, torque, and speed of the rotor meet the design requirements, and optimize and adjust the design scheme.
2.2 Material Preparation
Select appropriate permanent magnet materials, such as neodymium iron boron, samarium cobalt, etc., according to the design requirements of the rotor. Choose suitable core materials, usually silicon steel sheets and other materials with good magnetic conductivity. Prepare core laminations that meet the design size and quality requirements, and perform surface treatment, such as cleaning and coating with insulating paint, to reduce eddy current losses and improve the insulation performance of the core. Select shaft materials with high strength and good toughness according to the load and speed requirements of the rotor, and conduct inspection and pretreatment before processing.
2.3 Production and Manufacturing

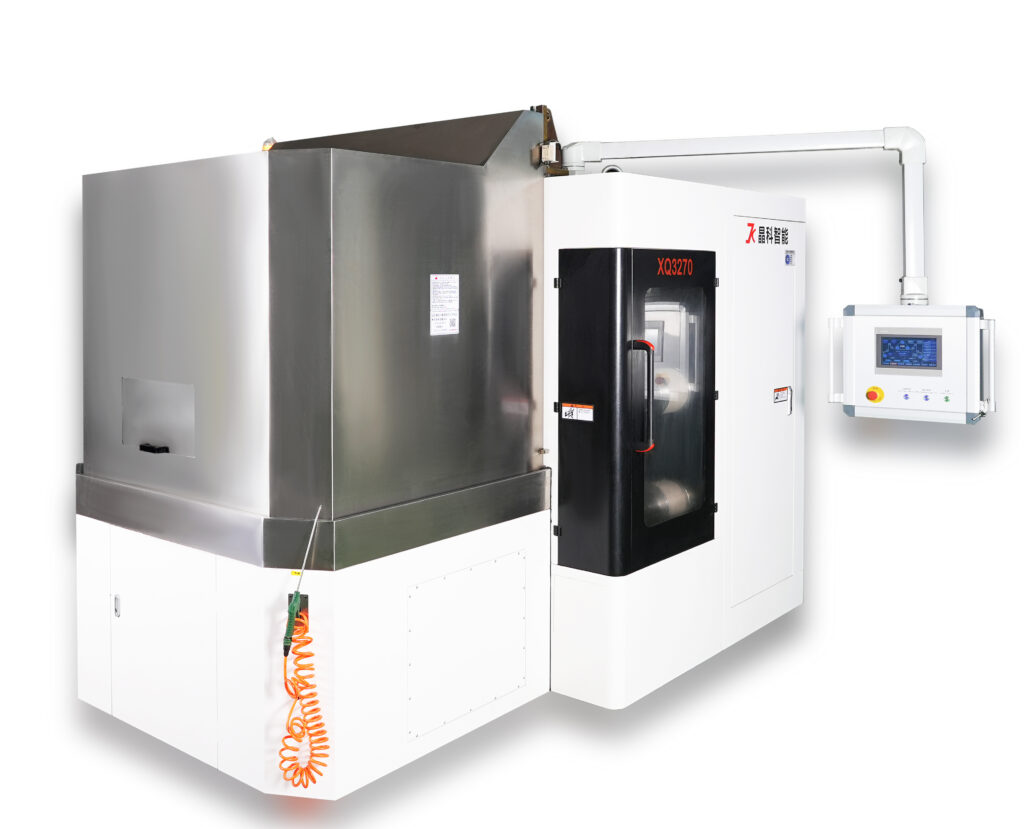

Process the permanent magnet blanks through cutting, grinding, etc. to make their dimensional accuracy and surface quality meet the design requirements. Use precision machining methods such as wire cutting and electrical discharge machining to ensure the dimensional accuracy and surface finish of the permanent magnets, so as to ensure the magnetic field performance and assembly accuracy of the rotor. Process the rotating shaft through turning, grinding, etc. to make it reach the designed dimensional accuracy and surface roughness requirements.
2.4 Rotor Assembly
Install the processed permanent magnets onto the core according to the designed arrangement, while paying attention to the magnetization direction and position accuracy of the permanent magnets. Assemble the rotating shaft and the core, usually using interference fit, key connection, etc. to ensure a tight connection between the rotating shaft and the core, which can transmit torque and bear the weight and centrifugal force of the rotor and other loads. Use thermal sleeve, cold pressing, and other processes for assembly. Install other components, such as rotor brackets, fans, balance weights, etc., according to the specific structure and design requirements of the rotor, and ensure the accurate installation position and firm connection of each component.
2.5 Quality Inspection and Optimization
Conduct performance tests on the assembled rotor, mainly including magnetic field strength test, magnetic flux test, torque test, speed test, dynamic balance test, etc., to ensure that the performance indicators of the rotor meet the design requirements. Inspect the appearance of the rotor, including the surface quality of the permanent magnets and the processing quality of the rotating shaft, and check for cracks, scratches, deformations, and other defects. If there are defects, repair or replace them in time. According to the test results and customer feedback, optimize and improve the design and manufacturing process of the rotor to improve the performance and quality stability of the rotor and meet customer needs.
2.6 Surface Treatment and Packaging
Perform surface treatment on the rotor according to the usage environment and customer requirements, such as coating with anti-rust paint, insulating paint, etc., to improve the corrosion resistance and insulation performance of the rotor and extend the service life of the rotor. Package the inspected and qualified rotor, select appropriate packaging materials and packaging methods, such as using wooden boxes, plastic films, etc. for packaging, to ensure that the rotor is not damaged during transportation and storage. At the same time, mark the product model, specification, quantity, and other information on the packaging.
Company Strength
The technical team of Hangzhou Magnet Power Technology Co., Ltd. is composed of magnetic material experts from the Chinese Academy of Sciences. Through continuous technological improvement and testing, it has a strict manufacturing process and exquisite processing technology for rotor production. It covers 24 countries and regions around the world and has more than 1,000 cooperative customers. Its products are widely praised in the market.
CJL relying on its strong scientific research strength, has outstanding highlights in customized products. In today’s market environment, customers’ demands for rotors are becoming more and more diverse. They often need to customize exclusive magnetic components and rotor products according to their own unique usage scenarios and special process requirements. With its powerful technical team and excellent production strength, CJL strictly manufactures the required products according to customer requirements and can also provide customers with better product solutions. During the entire customized production process, it will maintain close communication with customers, timely feedback the project progress, and adjust and optimize the plan according to customer feedback to ensure that the final delivered products fully meet the personalized needs of customers. It is precisely because of the special requirements of different industries for rotors that the rotor manufacturing technology is constantly innovating and breaking through, moving towards higher performance and more specialization.
