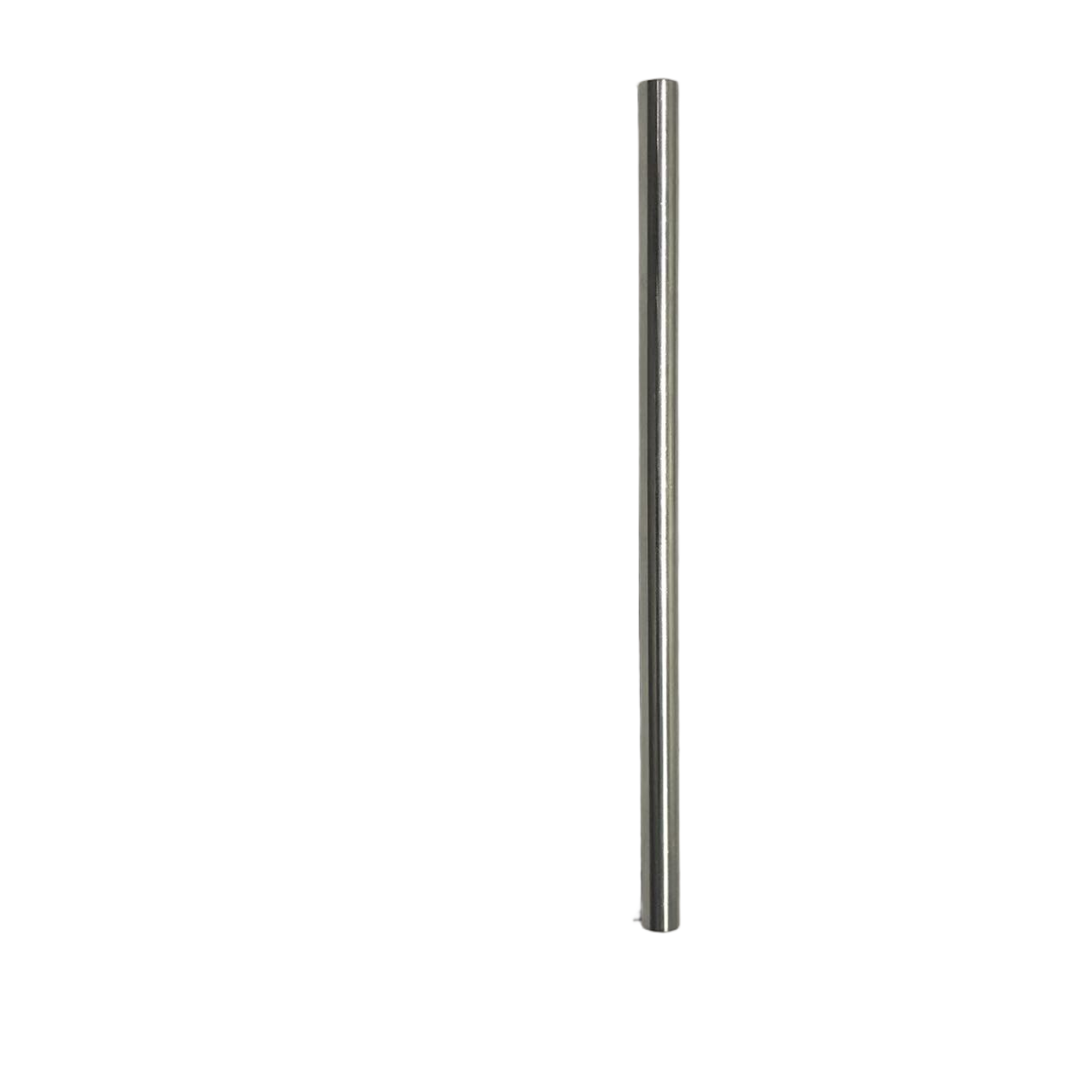

Magnetic tube cores are equipped with powerful neodymium magnets,covered by stainless steel tube,welded seal both eands.The magnetic tube emit high magnetic,when the ferrous materials pass through,they will be attracted,so the material can achieve an excellent quality and protect the downstream equipment working more smoothly.Magnetic tubes could be fixed in inlet holes,outlet holes or pipelines,also could widely use in magnetic bars,magnetic drawers and magnetic filters for liquid lines.

Features of magnetic bars

1.Magnetic tubes are made of 304,316,316L stainless steel and super high magnetic force in magnet. Standard round tubes has a length of 25mm (1 inch) diameter. As required,it can reach the maximum length of 2000mm. Square magnetic tubes or other different shape and dimension are also available.

2.304,316 or 316L stainless steel are available for pipeline material which can be fine polished and meet the standard of food or pharmacy industry.

3.Standard working temperature < 80 deg.C,and maximum working temperature can reach 300 deg.C as requiredm,with samarium cobalt magnet.

4.Various kinds of ends like nail head,female thread hole,male thread,double screw bolt are also available.

5.Different kinds of magnet like ferrite magnet,neodymium magnet,samarium cobalt manget are available to meet each customer’s requirement.

6.Easy cleaning magnetic tubes are also available.
